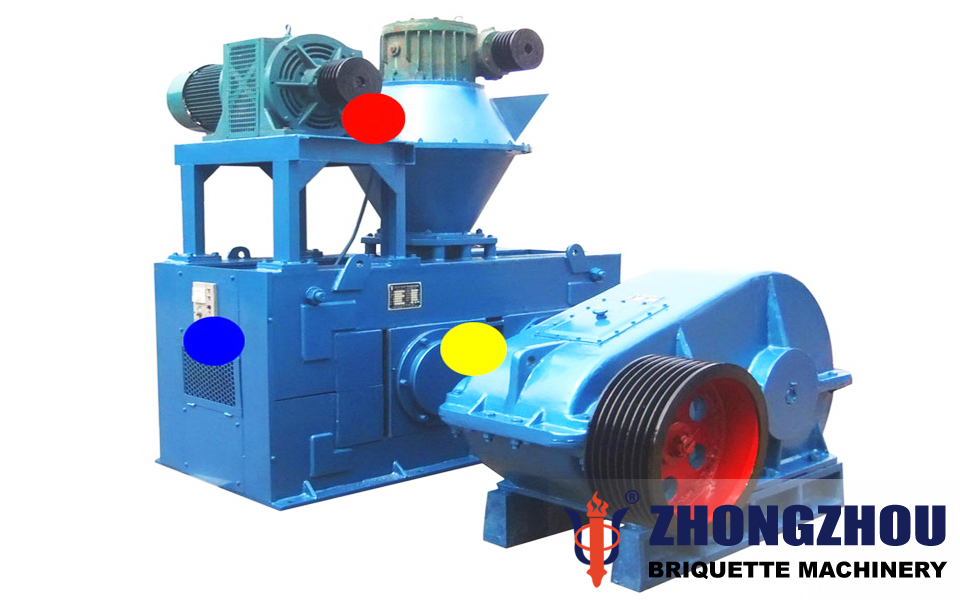

Aluminum dust briquette machine, also be named AD briquette machine, aluminum ash briquette machine, aluminum ash is product of the molten slag which is cooled in the production process of electrolytic aluminum or cast aluminum.

Aluminum dust briquette machine is mainly used dry pressing typel, the whole process of pressing briquettes without any moisture and adhesive, direct forming,it has high pressure. Composition of aluminum ash briquette machine includes motor, reducer, belt, roller, gear, chassis, frame, pressure feed device, pressure device and the discharge device etc.

Zhongzhou aluminum dust briquette machine adpot taper assembly for rollers, easy discharging rollers, saving time and save labor. Supporting equipment to provide a one-stop solution. Equipment maintenance is simple, the loss is small, the technical problems can be sloved through contacting with us at any time, we provide a full range of technical support to solve your worries in 24 hours.

Purchase guidance:
Please inform the production requirements, the size of briquettes into its shape, the parameter table is based on the capacity of our company's standard briquettes size, calculated as the density of lime into the briquettes.

Zhengzhou Zhongzhou Briquette Machinery Plant has formed a research and development, design, manufacture, test and service of professional equipment manufacturers in China briquette machine industry, and equipped with the perfect test room of briquette machine , our factory can determine the process process and process parameters, and complete the model selection and design and manufacture based on users' material through experiment, that is the most complete and specific briquette machine manufacturing base. Welcome to visit our factory!

 Productive advantages

• Four rollers double pressure



  after the first pressurization, the materials between main and auxiliary rollers enter the place between two main rollers for a second pressurization, where the pressure will be twice of the type of two rollers.(the auxiliary roller pre-press the hemisphere on the amin roller to exhaust air, the hemisphere will be pressed again into briquettes fomation through two main rollers).

• GB standard hydraulic components



  manufaturing by Dezhou oil pump company, using embolism type pump equipped with storage device which can be operation of protection briquette machine when the hydraulic moment fluctuation, the oil cylinder adopts compound type and be made of standard material 27SiMn, extremely good finish, wear resistance, having protective effect on seals.

• Roller taper assembly techology(patent)



  Roller and wheel hub of briquette machine is processed into tamper structure, which shall be compacted firmly by bolts for stability and reliance, easy to replace roller,save time and efforts for users.

• 9Cr2 forging rollers



  the roller materials adpot 9Cr2 forging steel, high precision and abrasion resisitant, the rigidity reach to 55-60HR through prempering.

• National standard bearing



  Using the rolling mill bearing series, each model is the double row cylindrical ball bearing, well-known brands, lagre load bearing, stable performance, guarantee period of 5 years.

• Split plummer block



  Unique split type design, precision machining, simply remove the bolts when the user maintenance, open housing, can be seen bearing, ease of maintenance.

• Steel reducer



  Independent production, full steel material bell housing, gears made of 40Cr steel, stable performance.

• Spindle material



  high quality finished No.45 steel tempering.
